T500 PIXEL CONTROLLER

The T-500 Pixel LED Controller is a compact digital controller designed for controlling programmable/addressable LED lighting systems. It operates on a DC 5V–24V wide-voltage input and supports common one-wire and two-wire LED driver IC configurations. The controller can manage up to 512 pixels and provides adjustable brightness, playback speed, and multiple dynamic lighting patterns. Its built-in digital display and easy-to-use control buttons allow users to select operating modes, adjust effect speed, and configure lighting effects conveniently. The T-500 provides TTL/SPI output and connection terminals for power and LED signal wiring. With its compact enclosure and mounting points, it is suitable for LED strips, pixel modules, decorative lighting, signage, stage lighting, and DIY programmable LED projects.

Description

Key Features

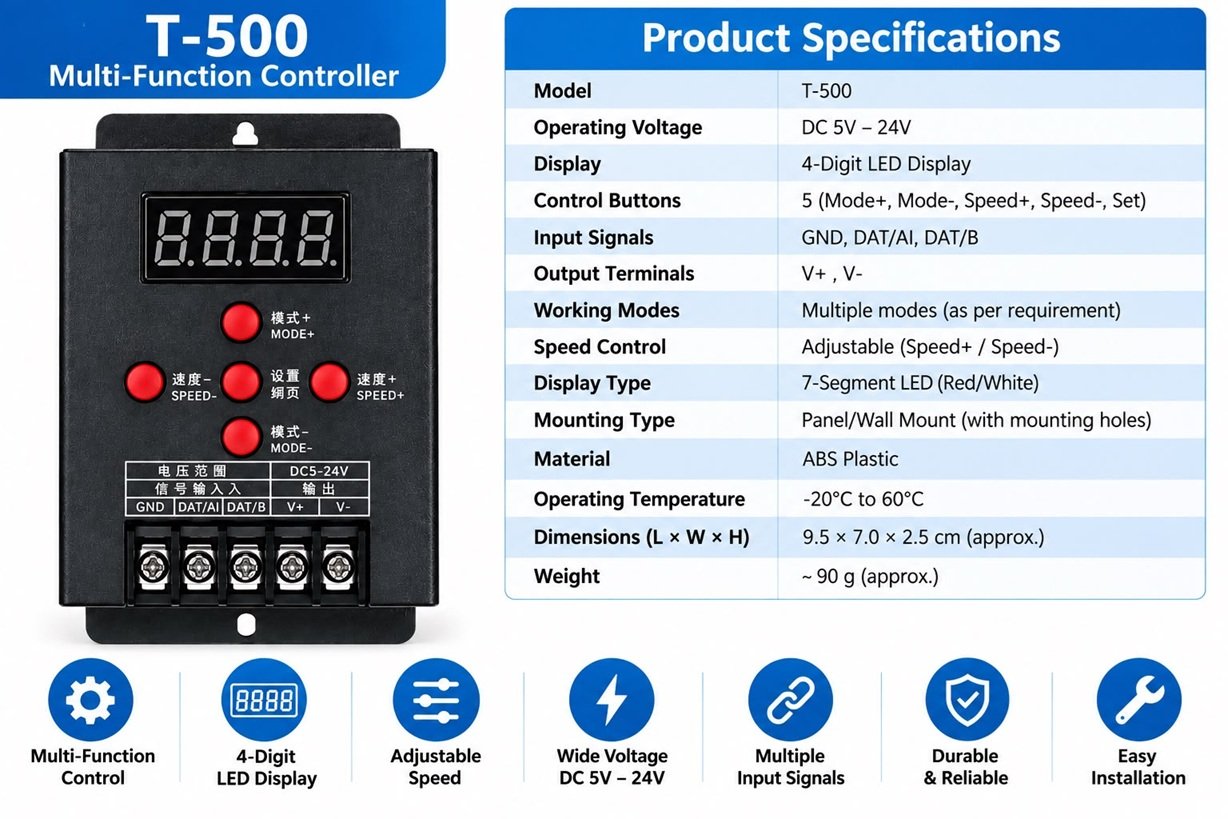

Name: T500 PIXEL CONTROLLER
SKU: 28585
Price: 529.00 INR
Availability: InStock

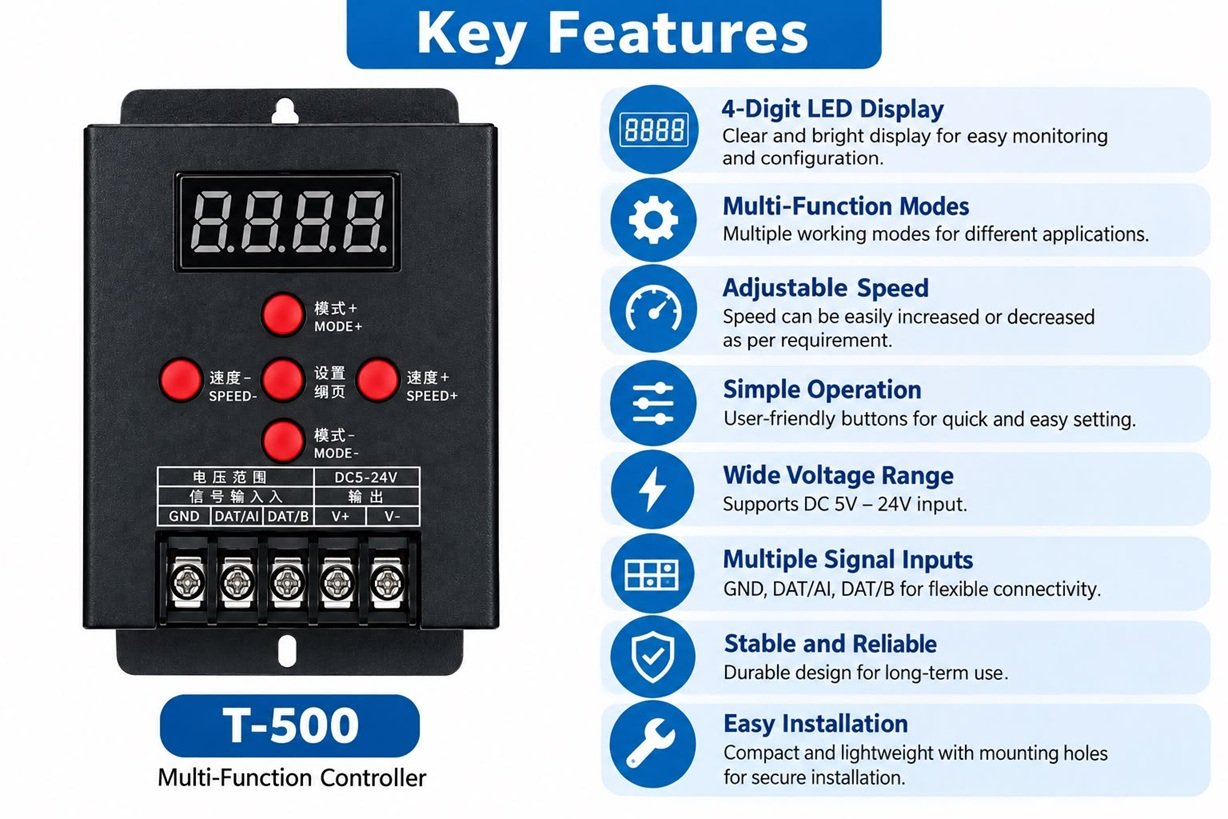

Wide Input Voltage: Supports DC 5V–24V power supply., 4-Digit LED Display: Provides clear indication of modes and settings., Multiple Lighting Modes: Offers various dynamic effects for programmable LED lighting., Adjustable Effect Speed: Dedicated Speed+ / Speed− buttons for easy adjustment., Mode Selection: Mode+ / Mode− buttons allow quick switching between effects., Easy Configuration: Dedicated SET button for convenient parameter adjustment., Pixel LED Control: Designed for compatible addressable/digital LED strips and pixel modules., Signal Connections: Terminals marked GND DAT/A DAT/B V+ and V− for wiring., Compact Design: Space-saving enclosure with mounting slots for installation., Easy to Operate: Simple push-button interface suitable for lighting projects signage decorative displays and other compatible LED applications.

Other Power Features

Operating Voltage: DC 5V–24V, Power Source: DC, Wide Voltage Compatibility: Suitable for compatible 5V 12V and 24V LED systems., Power Input Terminals: V+ and V−, Signal Connections: GND DAT/A and DAT/B, Low-Power Controller Design: The controller itself requires relatively low operating power the connected LEDs use a separate/appropriate DC power supply according to their load., Stable DC Operation: Designed for continuous operation with a properly regulated DC supply., Adjustable Output Control: Allows control of compatible LED effects and running speed., Polarity-Sensitive Connection: Correct V+ / V− wiring should be maintained to prevent damage., External Power Supply Required: Power adapter/SMPS capacity should be selected according to the voltage and total wattage of the connected LED load.

Key High Lights

Compact and lightweight controller design, 4-digit digital display for easy monitoring, Simple push-button operation, Mode+ / Mode− controls for effect selection, Speed+ / Speed− controls for effect-speed adjustment, Dedicated SET button for configuration, Supports compatible digital/addressable pixel LED applications, Multiple signal connection terminals, Clearly marked wiring terminals for easier installation, Built-in mounting slots for secure installation, Durable enclosed construction, Suitable for LED strips pixel modules signage and decorative lighting, Useful for DIY lighting and electronic projects, Designed for convenient repeatable operation after configuration
