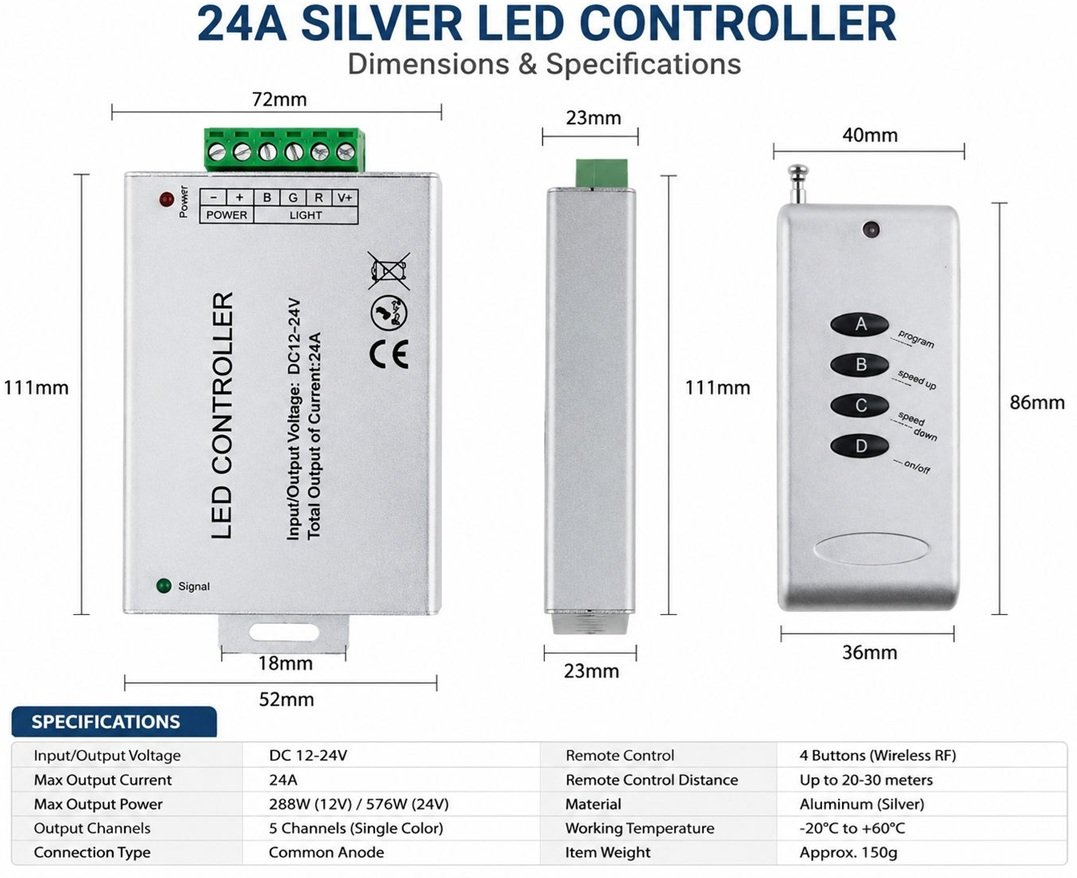

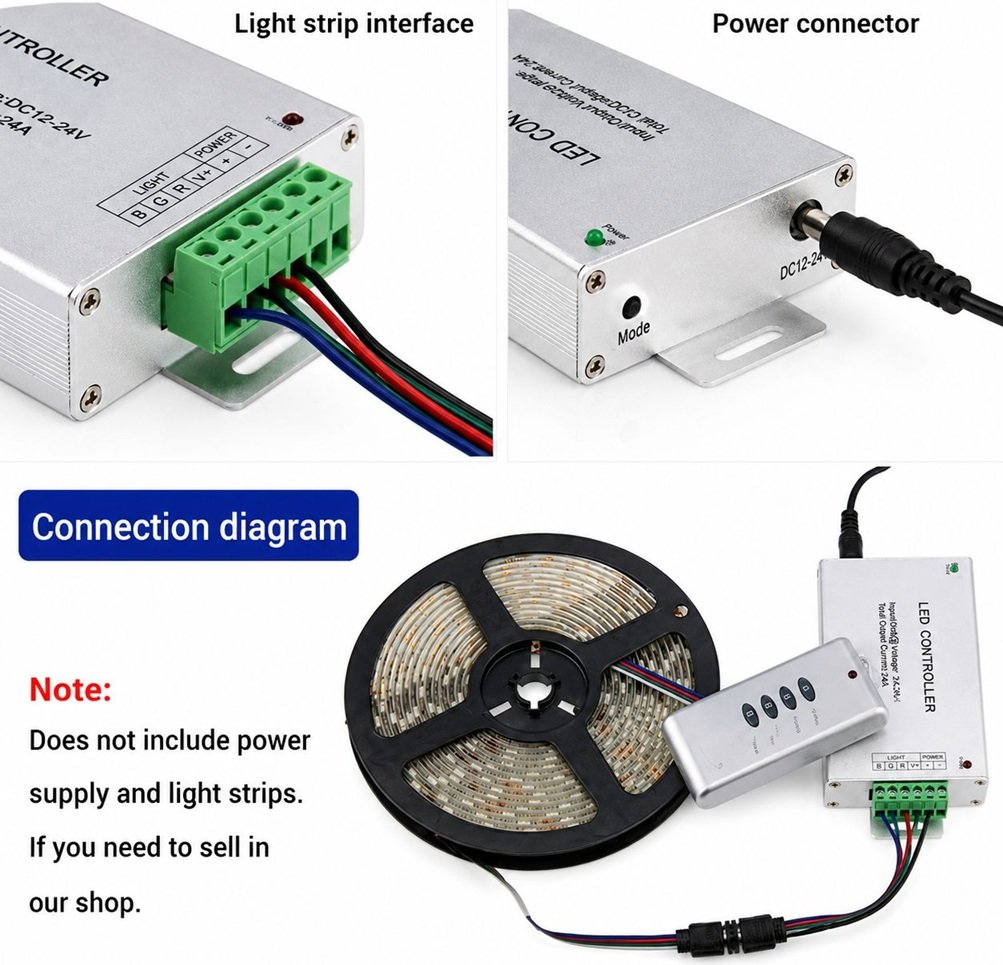

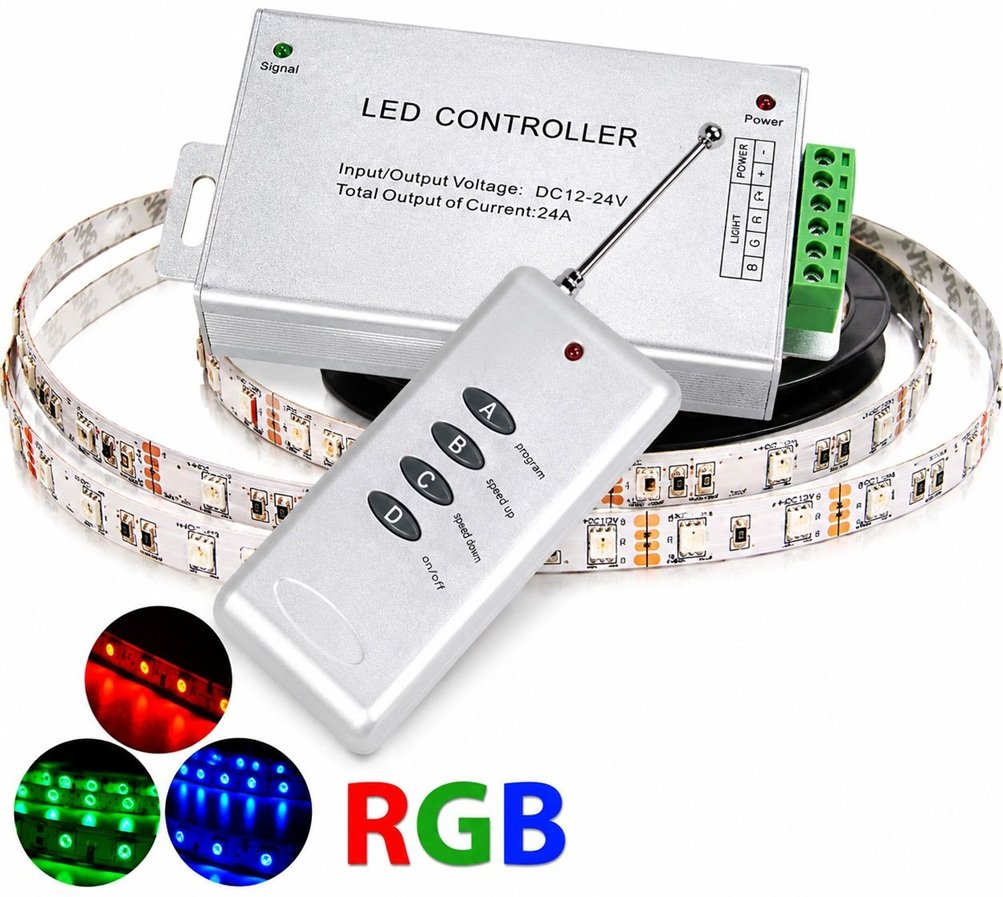

DC12-24V RGB Controller Wireless RF Remote Controller 4 Keys for 3528/5050 RGB LED Strip Light Features: Four key controllers, Applicable Lights: Yes, Max. Load Power: 288, Wattage: 144, Remote Distance: 10Meter, Certification: CE, RoHS, and Voltage: 12-24V, Material: Aluminum Power Source: DC, Connection Mode: common anode, Model Number: KZQ-ABCD12A, Oscillation frequency: 0, Controlled Method: IR remote controller, Usage: for RGB LED lighting, Package: 1 controller +1 remote, Battery: included, Size for controller: 129*64*23mm, Size for remote: 90*30*16mm, Gross weight: 210g, Button Number: 4 Direction for use Connect the load wire at first, following by the power wire; Please ensure short circuit cannot occur between connecting wire before you turn on the power; Adopt RF control, there are four buttons altogether, and every key-press function is as follows: Program: pattern key, lighting color will change if you press one time; Speed up: to speed up lighting color changing; Speed down: to speed down lighting color changing; On/off: Power switch, you could turn on/off controller in any state. Application Compatible with MSS RGB flex LED strip, RGB LED bar light, RGB LED module for sign, 12/24V RGB LED wall washer etc. RF controller adopts the advanced micro control unit; it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on; At the same time, it has many advantages such as convenient connection ,simplicity to use and others. According to the actual need of customers, it can carry out jumpy changing, gradual changing, strobo flash and other effects of change. Technical Parameters: ? Working temperature: -20-60 ? ? Supply voltage: DC5V, 12V, 18V, 24V ? Output: 3 channels ? Connecting mode: common anode ? Transmission/Receiving frequency: 315 MHz ? External dimension: L128 ? W64 ? H24 mm ? Packing size: L145 ? W95 ? H50mm ? Net weight: 185g ? Gross weight: 215g ? Static power consumption: <1 W ? Output current: <4 A (each channel) ? Output power: 5 V: <60W, 12V: <144W, 24V: <288W
