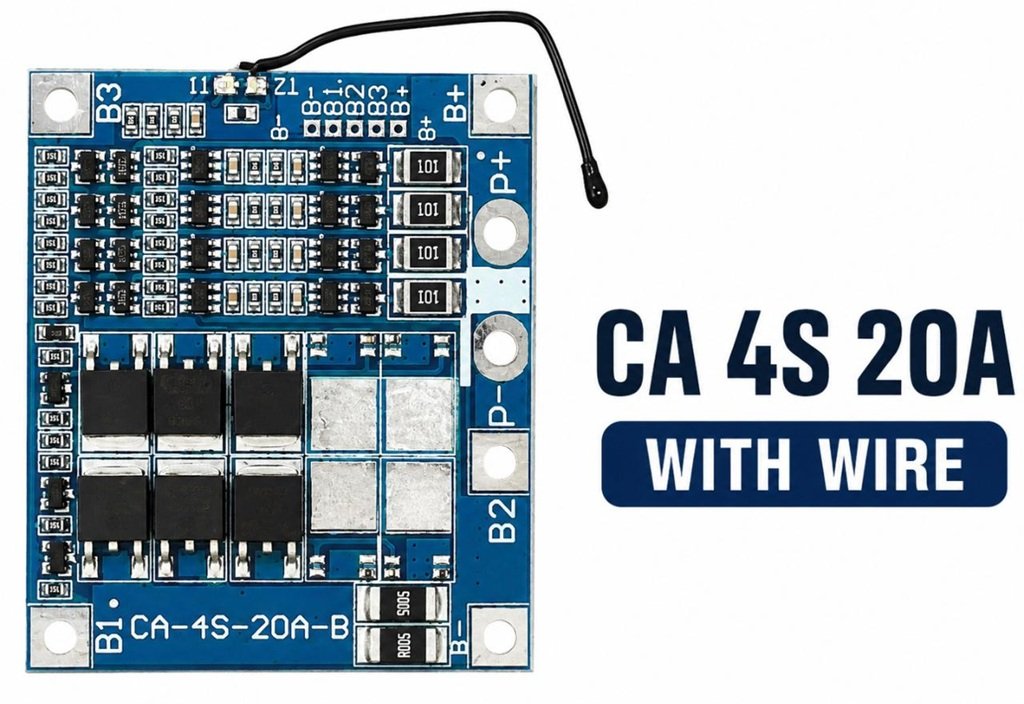

    4S 20A Lithium-Ion Battery Protection BMS with Wire High Quality Electronic Components

    Original price was: ₹399.00.Current price is: ₹119.00.

    The CA 4S 20A BMS with Wire is a compact Battery Management System designed to protect and manage 4-cell series lithium-ion battery packs. It helps provide safe and reliable battery operation by monitoring the battery pack during charging and discharging. With a 20A current rating, this BMS is suitable for various DIY battery packs and electronic applications. The integrated protection functions help safeguard the battery against overcharging, over-discharging, over-current, and short circuits. The pre-attached wiring makes battery pack connection convenient and simplifies installation.

    Add to wishlist
    Category:
    Description
    Key Features

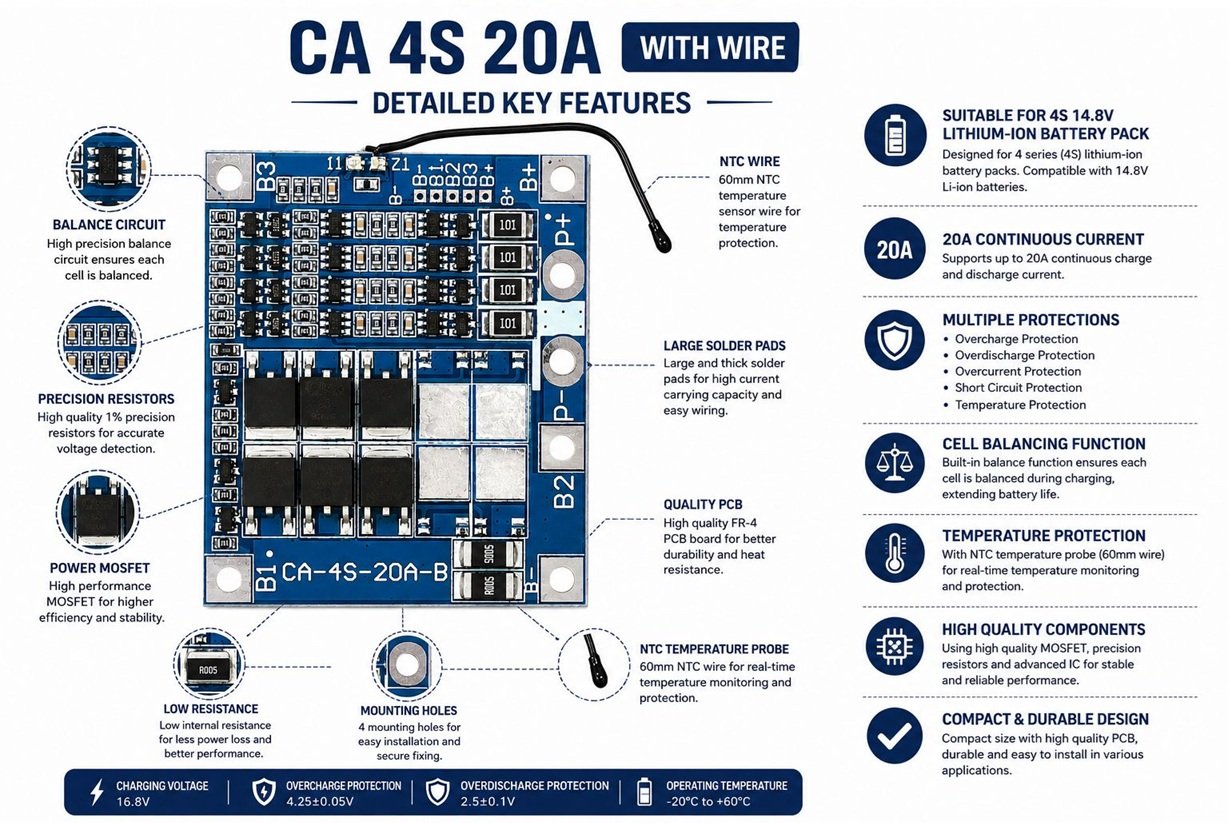

    4S Battery Management System, 20A Current Rating, Protection Against Overcharge, Over-Discharge Protection, Over-Current Protection, Short-Circuit Protection, Compact and Lightweight Design, Comes with Connecting Wires, Suitable for DIY Battery Pack Assembly, Designed for 4-Cell Series Lithium-Ion Battery Packs, Easy to Install and Connect
    Other Power Features

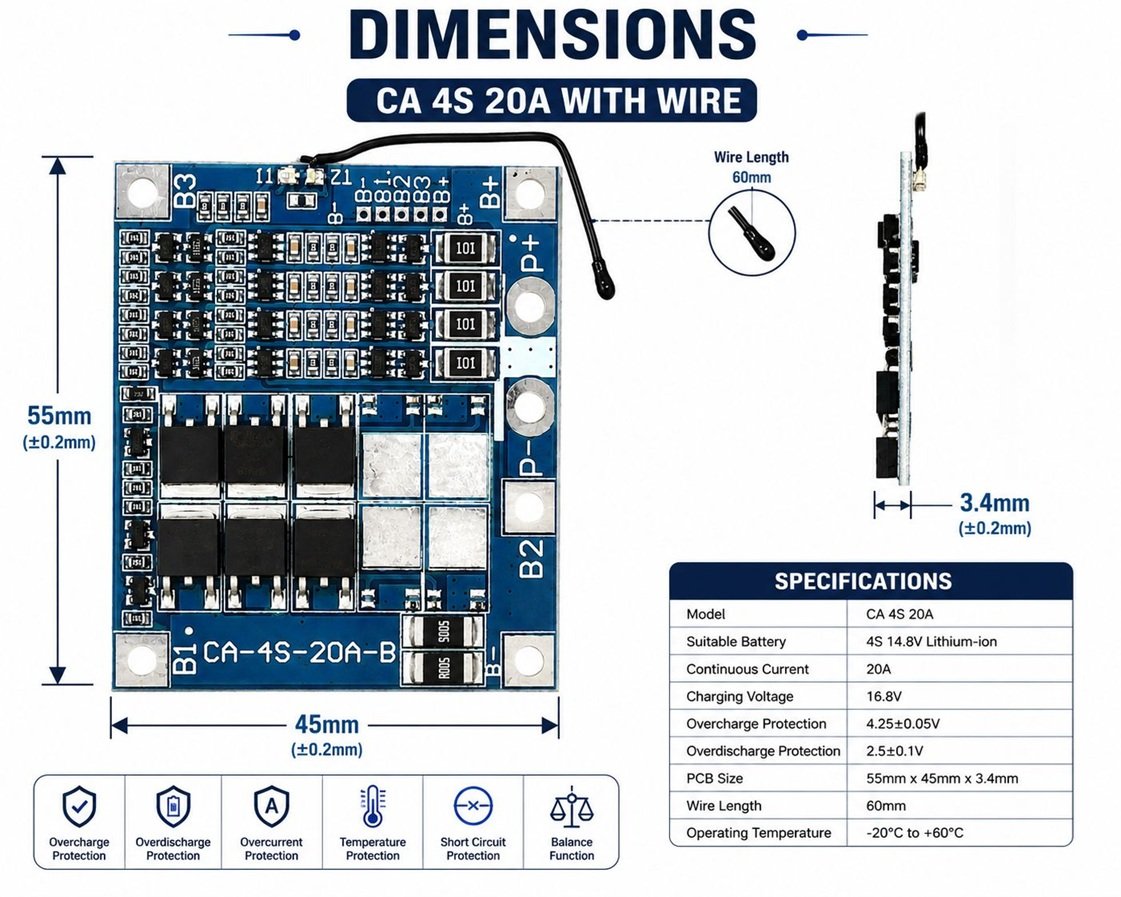

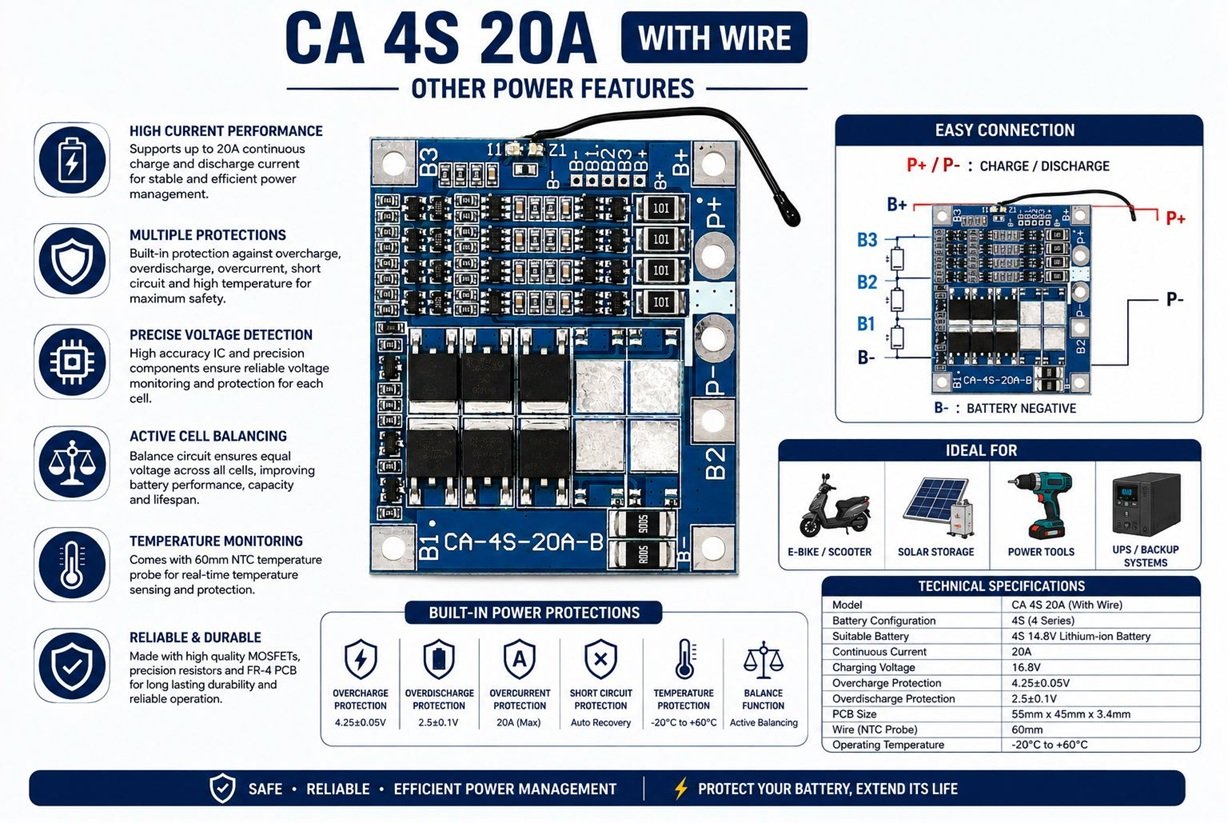

    CA 4S 20A BMS with Wire, Rated Current: 20A, Battery Configuration: 4S, Nominal Battery Voltage: 14.8V, Full Charge Voltage: 16.8V, Battery Type: Lithium-Ion / Li-Po, Overcharge Protection: Yes, Over-Discharge Protection: Yes, Over-Current Protection: Yes, Short-Circuit Protection: Yes, Cell Balancing: Supports battery pack protection and balancing*, Power Source: Rechargeable Lithium Battery Pack, Connection: Wire

    Key High Lights
    Key High Lights
    Over-Voltage Protection, Under-Voltage Protection, Over-Current Protection, Short-Circuit Protection, Overcharge Protection, Over-Discharge Protection, Charging Protection, Discharge Protection, 4-Cell Series (4S) Support, 20A Continuous Current Rating, Low Power Consumption, Battery Safety Protection, Wire-Connected Design, Rechargeable Battery Support
